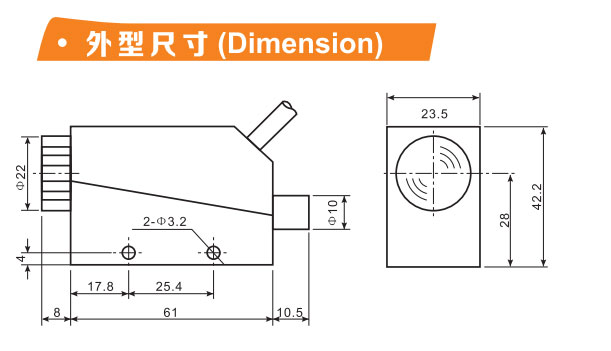

Color Mark Sensor

Category：Color Mark Sensor；Model：Z3J-TS

This series of products named in the following way:

Z3J-TS 2口E3

口—Light source:
R for red, G for green, B for blue, W for white

Detecting mode	Coaxial reflecting
Detecting distance	15mm±2mm
Supply voltage	DC10-30V±10 residual ripple <10%
Current consumption	Below45inA
Light source	Red, green, blue or white, selectable
Light spot	Red rectangular lit spot
Detecting angle	With light vertical to object, tolerance +/-15
Response time	1ms

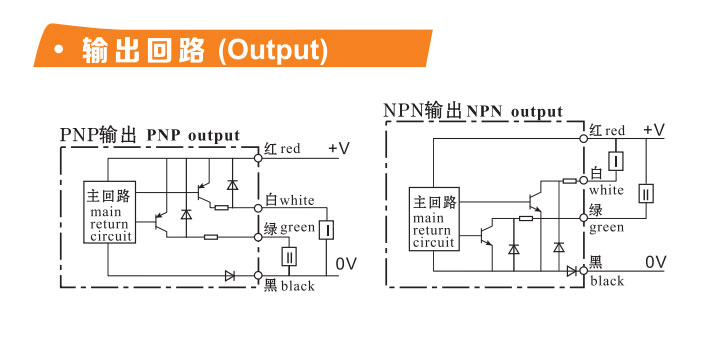

Output mode	With both light and dark operations
Output dictator	Red LED
Output voltage	High level VS-(=<1.5), low level (=<1.2V)
Load current	200mA(max)
Circuit protection device	With reverse-polarity protection for Vs, short circuit protection for output. Switch off automatically when load current >200mA and signal recovers when load current <200mA, also with wiring error protection.
Sensitivity	Adjustable
anti-background light	sunlight < 1000 LX incandescent light < 3000 LX
Protection class	lp67(humidity and dust proof)
Ambient temperature	Operation -15~5°C storage -25~80°C
Housing material	plastics
Connection cable	5.4 PVC 4 core protection shielding cable with standard length 2M
Weight	About 300g
